Description
In-Depth Product Features
Dual Epson I3200-A1 Printheads
- Delivers sharp CMYK+White output with strong color density and smooth gradients.
Built-In WiFi Printing
- Send files wirelessly from your computer, tablet, or phone no USB cables, no dedicated PC required.
High-Speed Production Modes
Choose the speed that fits your print quality and production needs.
- 4PASS: 14㎡/h
- 6PASS: 8㎡/h
- 8PASS: 6㎡/h
Precision Feeding & Safety
- Includes material pinch rollers, Leadshine servo motor, and anti-collision sensors for stable feeding and printhead protection.
Reliable Ink System
- Uses pigment CMYK+White with a high-accuracy ink station for smooth flow during long print runs.
Hoson Main Board
- Provides fast data processing and accurate dot placement for clean, consistent prints.
DF-800A(Pro) Powder Shaker
24in / 60cm Working Width
- Perfect match for the 8072-3
Automatic Powder Application
- Applies adhesive powder evenly for stronger transfers and reduced waste.
Fast Heating & Curing
- Five 600mm (800W) heating tubes ensure uniform curing across the entire film.
Heavy-Duty Build
- High-power 3200W system with a reinforced frame designed for daily production.
Technical Specifications

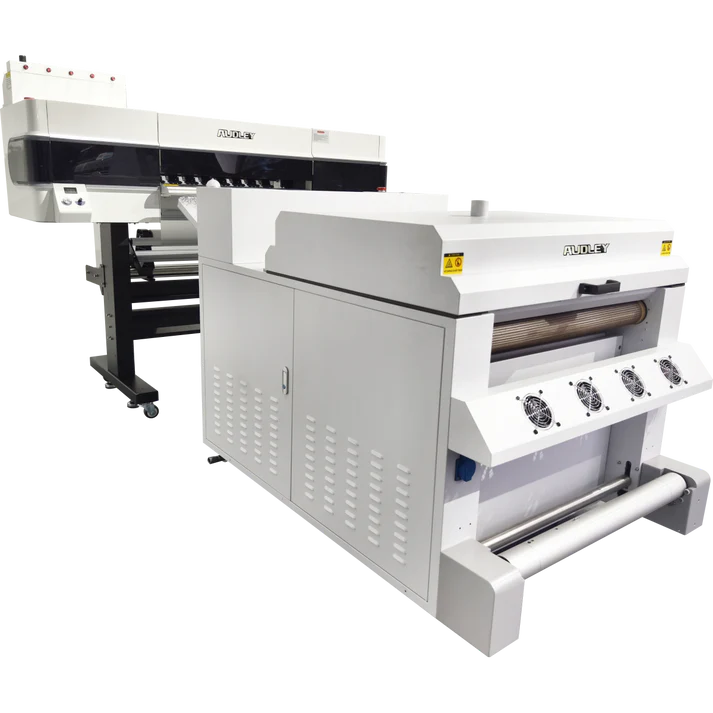

Printer – Audley 8072-3 DTF Printer
- Print Head: 2× Epson i3200-A1
- Working Size: Less than 24in (60cm)
- Print Color: C M Y K + W
- Ink Type: DTF pigment ink
- Print Speed:
6 pass: 8 m²/h
8 pass: 6 m²/h
- Media Type: DTF PET film
- RIP Software: Maintop / Photoprint / Flexi
- Voltage & Power: 220V, 50-60Hz
- Operating Environment: 20–28°C, 50–70% RH
- Machine Size: 73×30×62in (185×75×155cm)
- Weight: 485lbs (220kg)
Shaker – Audley DF-800A(Pro) Powder Shaker
- Applicable Film Width: 24in (60cm)
- Powder Box: Automatic
- Heating Method: Front, Middle & Rear Heating
- Powder Recycling: Automatic Circulation
- Voltage & Power: 220V, 50-60Hz
- Power: 3kW
- Machine Size: 67× 34 × 36 in (170×85×91cm)
- Weight: 243lbs (110kg)
