The Epson SureColor R5070 is a 64" roll-to-roll signage printer built around breakthrough resin ink technology — the first of its kind to feature multi-purpose resin ink for consistent, professional-quality output across wallpapers, fabrics, uncoated papers, and traditional signage applications. With user-replaceable PrecisionCore TFP printheads, immediate lamination capability, and ultra-low ink costs at just $0.125 per milliliter, the R5070 is designed to keep high-volume print shops running at full capacity with minimal downtime and maximum return.
Powered by 6-color UltraChrome RS water-based resin ink — including cyan, magenta, yellow, black, light cyan, light magenta, plus optimizer and maintenance liquid — the R5070 delivers vibrant, scratch-resistant prints with reliable color consistency job-to-job and panel-to-panel. Dual 1.5L bulk ink packs with hot-swap functionality on the R5070L keep production running even during ink changes.
Why shops choose the Epson SureColor R5070:
- Multi-purpose resin ink — prints wallpapers, fabrics, uncoated papers, and traditional signage from one printer
- 6-color UltraChrome RS ink with optimizer — vibrant color, reliable consistency, and scratch-resistant output
- Immediate lamination ready — high scratch resistance increases total productivity without additional finishing steps
- User-replaceable PrecisionCore TFP printhead — convenient self-serviceability and minimal downtime
- Ultra-low ink costs — 1.5L bulk ink packs with hot-swap functionality for uninterrupted production
- Advanced auto tension control (Ad-ATC) — accurate and reliable media delivery for roll-to-roll productivity
- Newly designed heating system — pre-heating, plate heating, and post-heating for optimal ink adhesion
- Epson Edge Print and Control Dashboard — job tracking, variable data management, and streamlined workflow
- GREENGUARD Gold, AgBB, and French VOC certified — suitable for interior environments including schools and healthcare
- 4.3" touchscreen — intuitive front-panel operation
- 1-year limited warranty — with optional service programs up to 3 years total coverage
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | Advanced PrecisionCore TFP 12-channel drop-on-demand inkjet with ink-repelling coating | Max Resolution | 1,200 x 2,400 dpi |
| Ink Type | UltraChrome RS — 6 color + Optimizer (C, M, Y, K, LC, LM, OP, ML) — 1,500 mL tanks | Nozzle Configuration | 1,600 nozzles (color and monochrome) — Variable Droplet Technology |
| Printer Language | Epson ESC/P Raster | Max Paper Width | 64" | Max printable width 63.6" | Min 11.8" |
| Roll Media | 64" wide | 2" or 3" core | Max diameter 9.8" | Max weight 100 lbs | Up to 1 mm thick | Take-Up Reel | Fully automatic wind-in or wind-out with tension control |
| Interface | USB 2.0 Hi-Speed, Ethernet 1000 BASE-T | OS Compatibility | Windows 8.1 / 10 |
| System Requirements | Min: 2GHz CPU, 2GB RAM, 120GB HDD Recommended: 3GHz+ quad core, 8GB RAM, 500GB SSD |
Power Supply | AC 200–240V, 50/60Hz, 16A x 2 (requires two outlets) |
| Power Consumption | Printing: 4.6 kW | Standby: 220W | Sleep: 44W | Off: 1.0W | Operating Environment | 59–86°F (15–30°C) Humidity: 20–80% | Recommended: 40–60% |
| Dimensions (W×D×H) | 116" × 41" × 70" (2,949 × 1,045 × 1,774 mm) | Weight | 990 lbs (449 kg) |
| Acoustic Noise | Approx. 66.1 dB | Certifications | GREENGUARD Gold, AgBB, French VOC, WEEE, RoHS, REACH |
| Warranty | 1-year limited warranty | Optional service programs up to 3 years total | ||

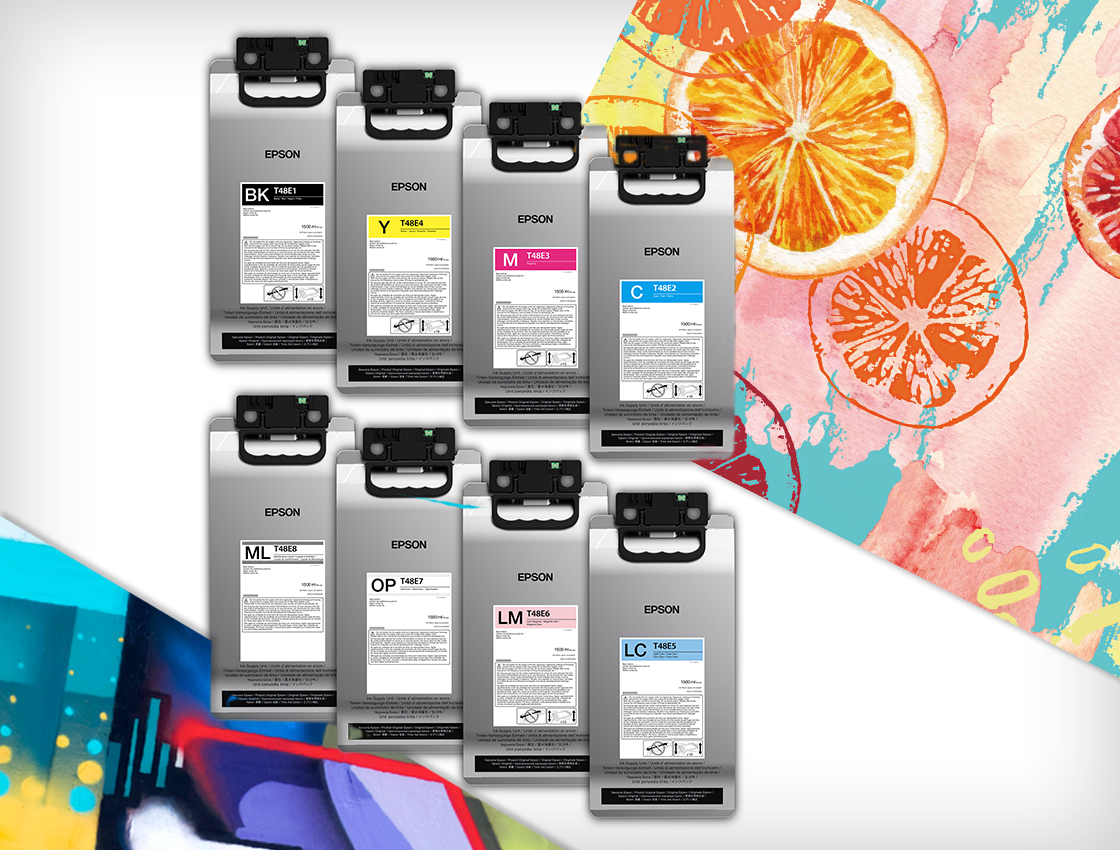

Ink Reference
| UltraChrome RS Ink (1,500 mL) | Black | Cyan | Magenta | Yellow | Lt Magenta | Lt Cyan | Optimizer | Maint. Liquid |
|---|---|---|---|---|---|---|---|---|
| Ink Pack | T48E120 | T48E220 | T48E320 | T48E420 | T48E520 | T48E620 | T48E720 | T48E820 |
