EIZO Prominence CG1

The EIZO ColorEdge PROMINENCE CG1 continues EIZO's legacy of HDR reference monitors — combining exceptional display performance with EIZO's unique algorithm to enable efficient, color-critical 4K video creation, editing, and mastering.

4K HDR editing & mastering

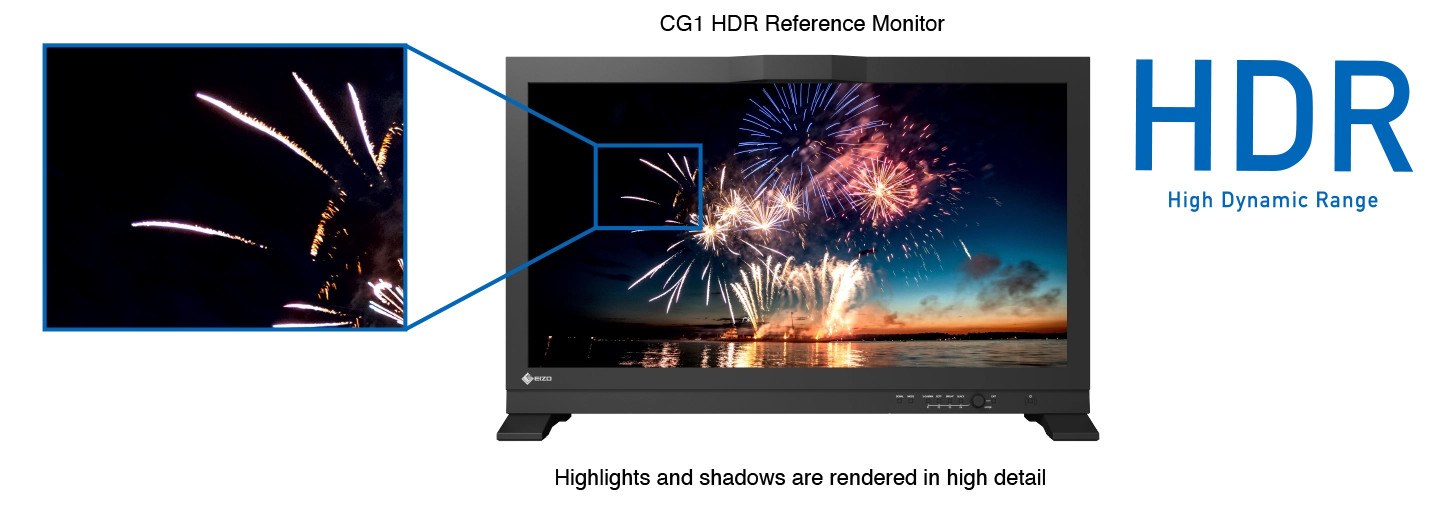

• True HDR — 1000 cd/m² brightness (typical) and 1,000,000:1 contrast (typical) without local dimming, for accurate light and dark detail across the whole screen

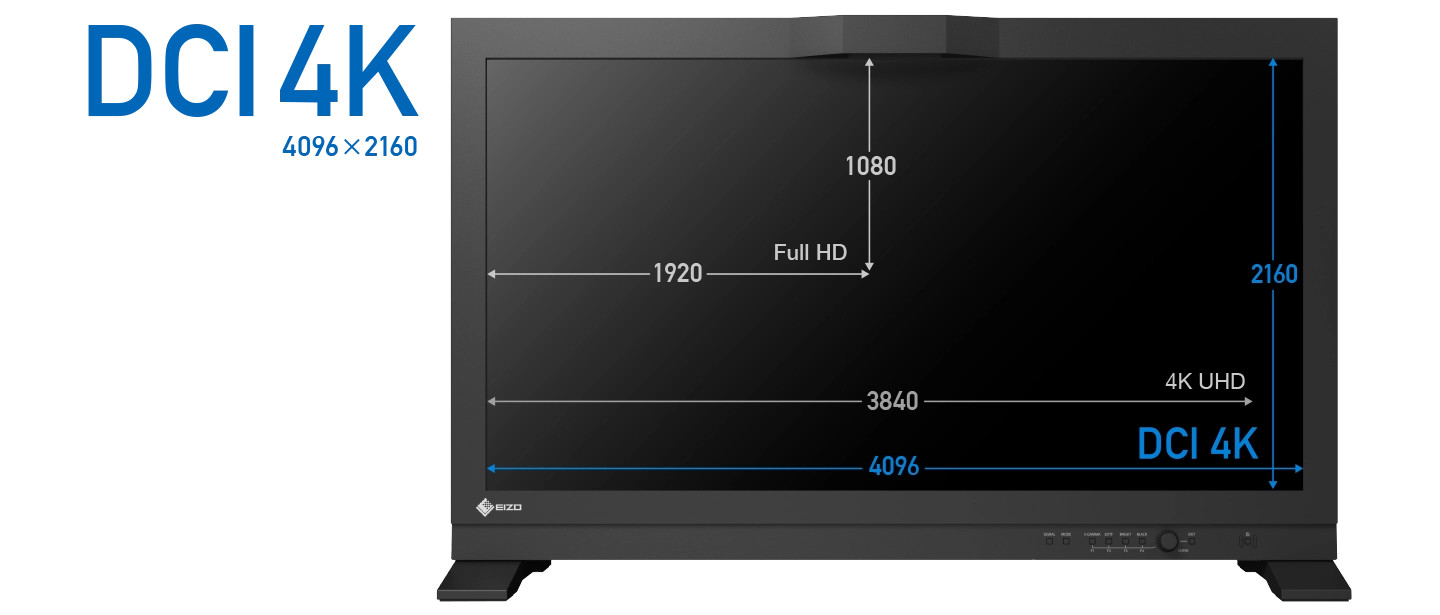

• DCI-4K on a 30.5" screen — 4096 × 2160 resolution, more than 4× Full HD, for 2D/3D CGI, VFX, compositing, and color grading
• Wide viewing angles — minimal shift in tone or contrast from the side, for consistent group viewing

Simple, precise color management

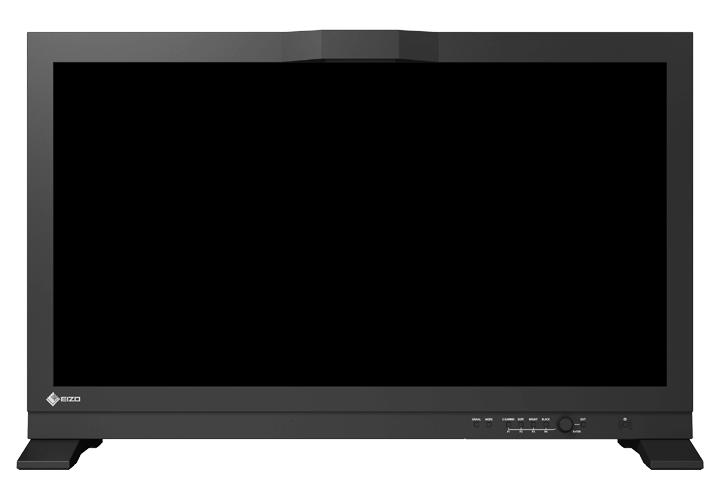

• Built-in calibration sensor — the world's first true-HDR reference monitors with an integrated sensor; no third-party device needed, and calibration data is saved to the monitor

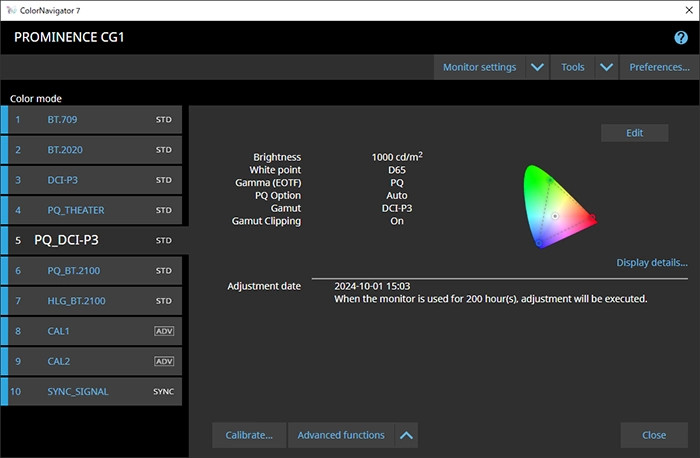

• ColorNavigator 7 — scheduled recalibration, all color modes at once, external-sensor correlation, plus a ColorNavigator API for integrating into editing, grading, and proofing systems

Advanced connectivity

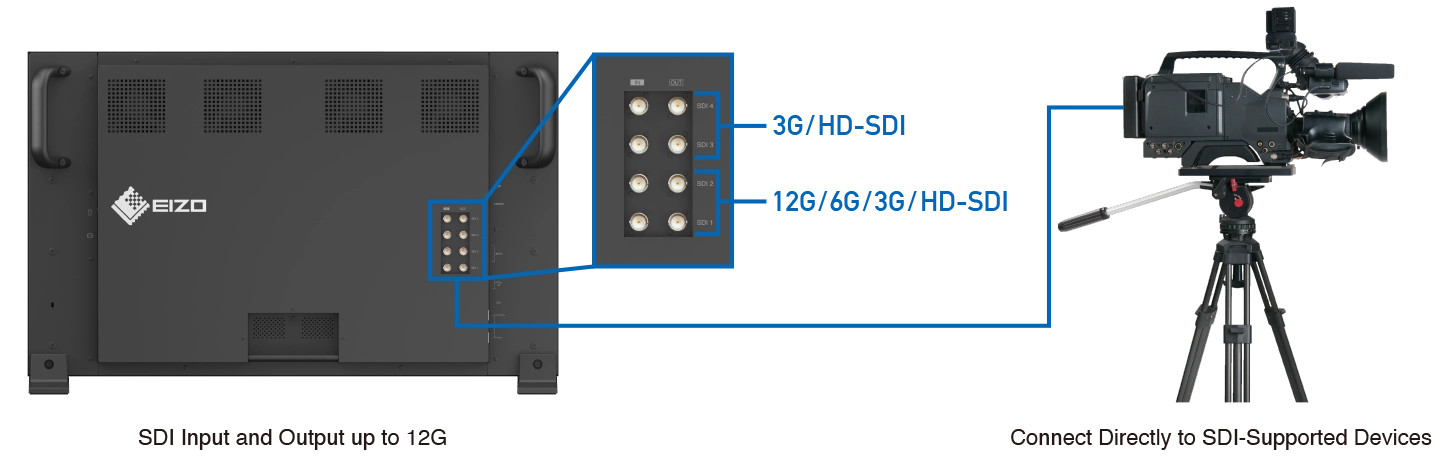

• SDI — two Single-Link 12G/6G/3G/HD-SDI and Dual/Quad-Link 3G/HD-SDI connections with 2SI for 4K transmission; camera-log viewing via ColorNavigator 7
• HDMI & DisplayPort — side-mounted; HDMI up to DCI-4K 60Hz 4:4:4 12-bit (with FRL support), DisplayPort up to DCI-4K 60Hz 4:4:4 10-bit; bundled Ultra High-Speed HDMI cable

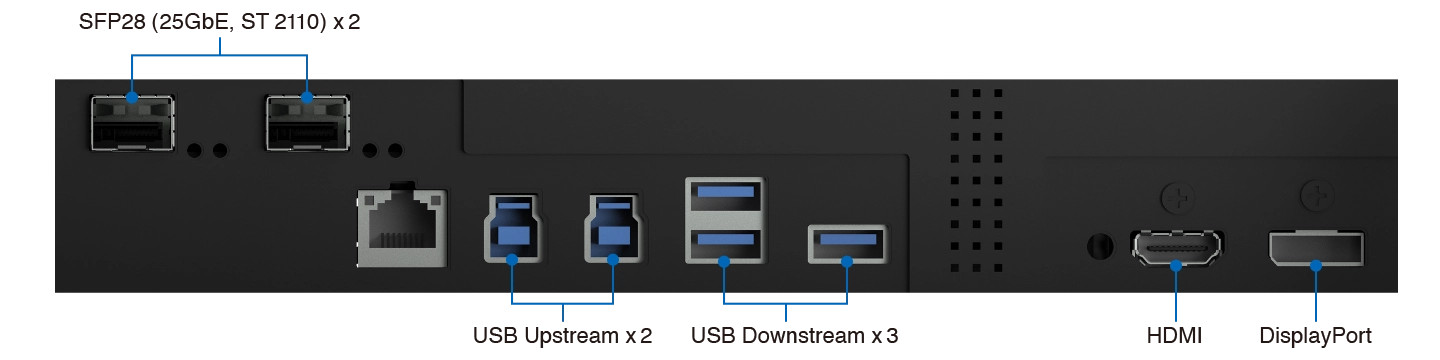

• SMPTE ST 2110 — two 25GbE SFP28 connectors for uncompressed video over managed IP networks (no ST 2110 audio/compressed video)
• USB — three downstream and two upstream ports

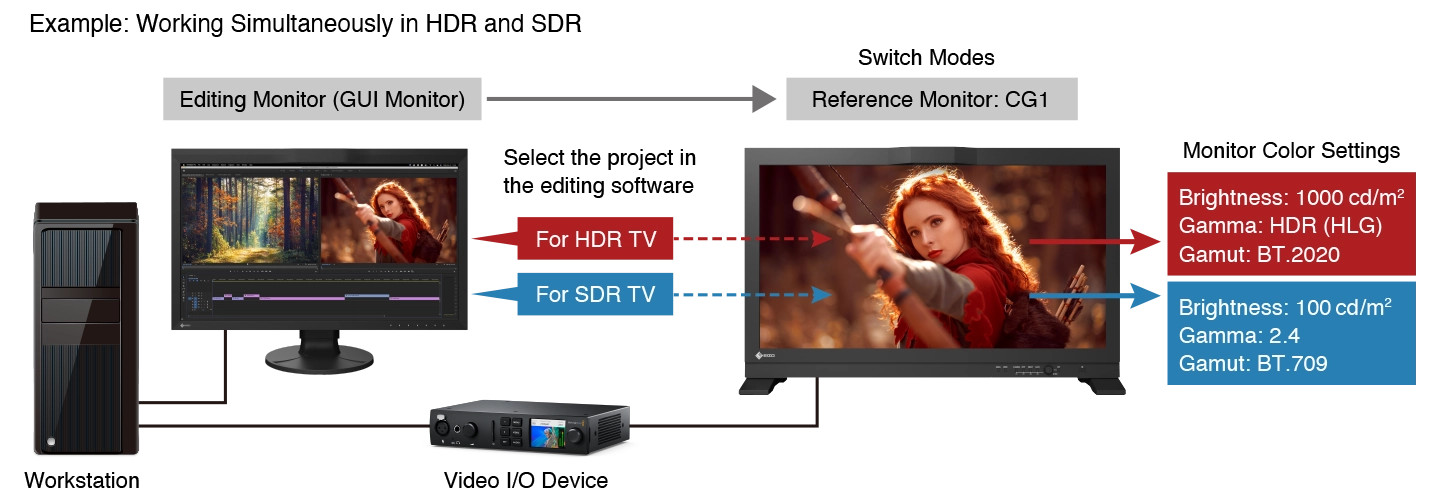

• Sync Signal — auto-switches brightness, gamma, and gamut from SDI VPID and input metadata

HDR gamma & 4K editing tools

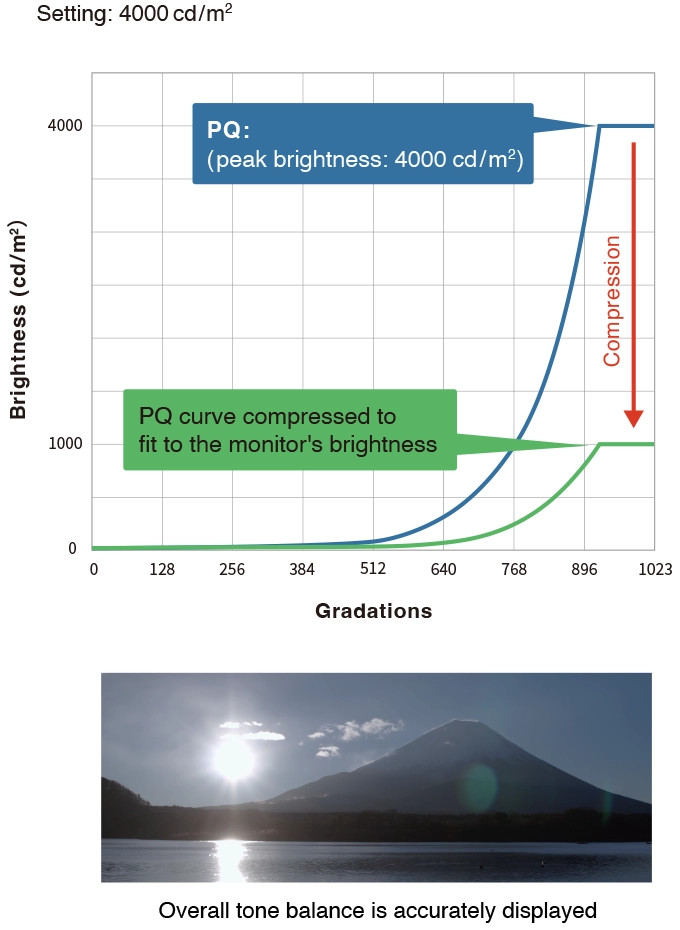

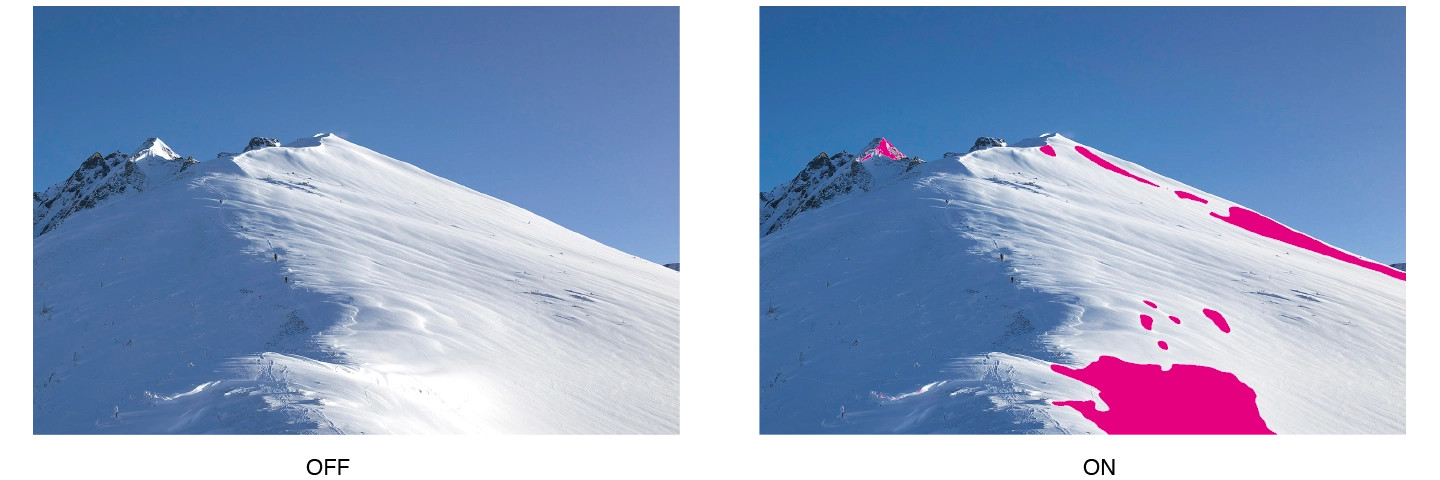

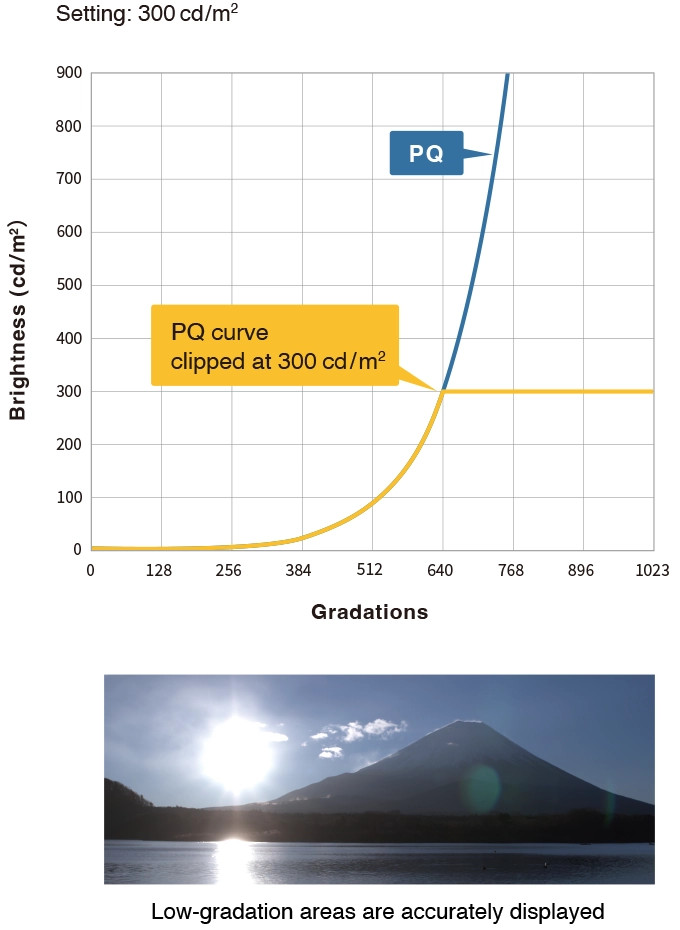

• HLG & PQ curves — ITU-R BT.2100 (PQ per SMPTE ST-2084), with PQ Clipping/Emulation to simulate other display environments and a Luminance Warning
• Post-production presets — DCI-P3, BT.2020, and more, for SDR and HDR projects via front-panel buttons

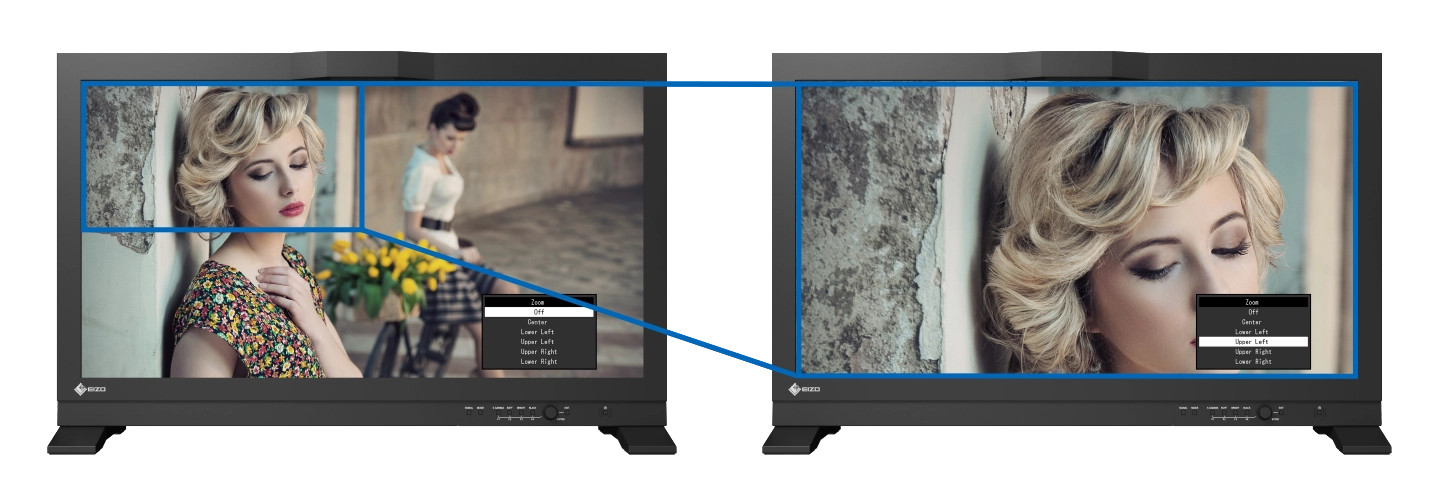

• 4K Zoom — enlarge areas to check fine detail and focus

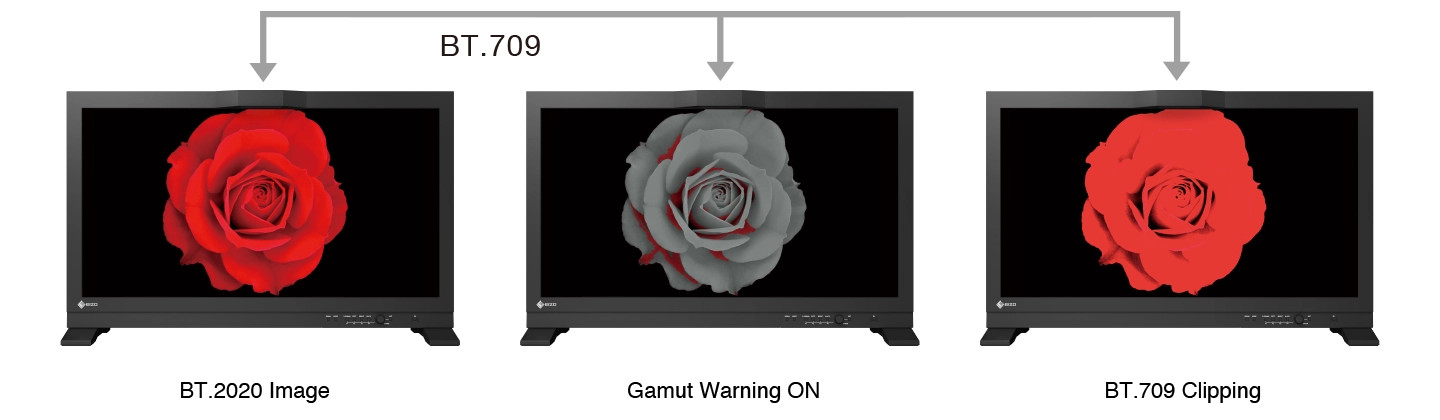

• BT.709 out-of-gamut warning & clipping — flag and preview BT.2020 content within BT.709

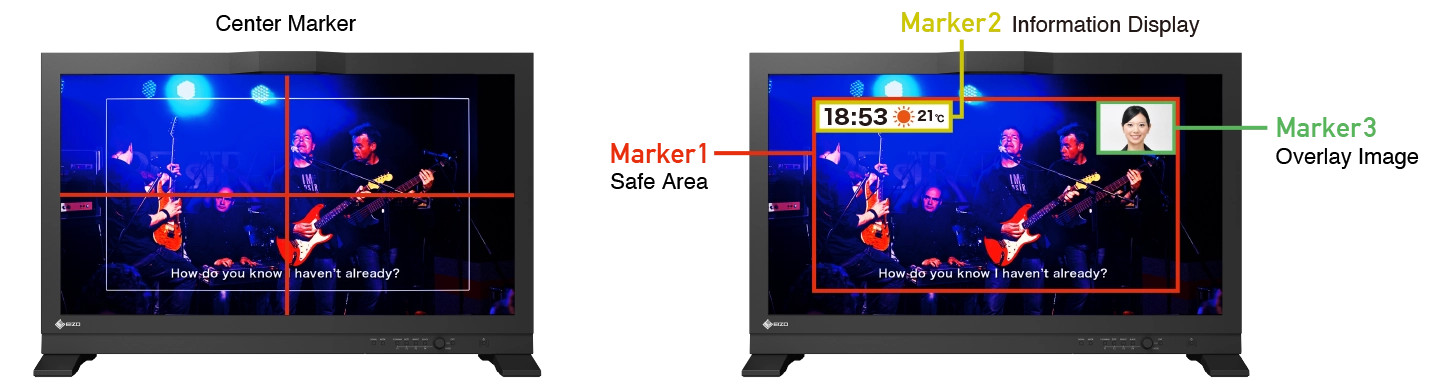

• Markers — center and safe-area markers for correct content placement

Stable & accurate display

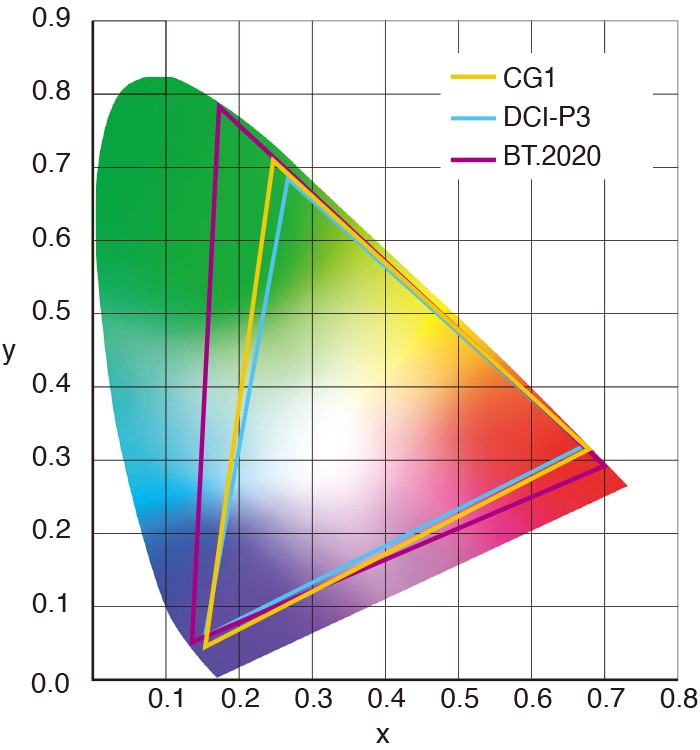

• 100% DCI-P3 — faithful color for post production
• 10-bit simultaneous display — from a 24-bit LUT, over a billion colors for smooth gradations and reduced delta-E
• 3D LUT — RGB cubic-table color adjustment, with film emulation via ColorNavigator 7

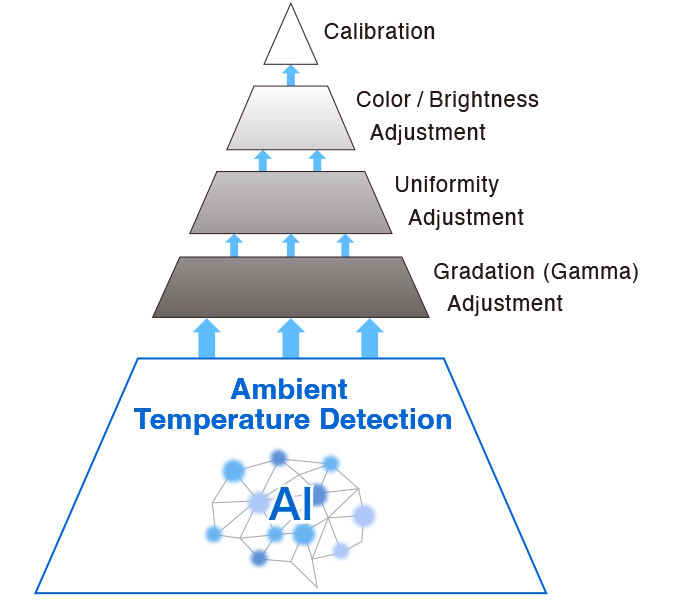

• AI-assisted stabilization & DUE — a temperature sensor with AI estimation plus Digital Uniformity Equalizer hold color steady across the screen and as conditions change
• Stable in ~3 minutes — reliable color soon after power-on

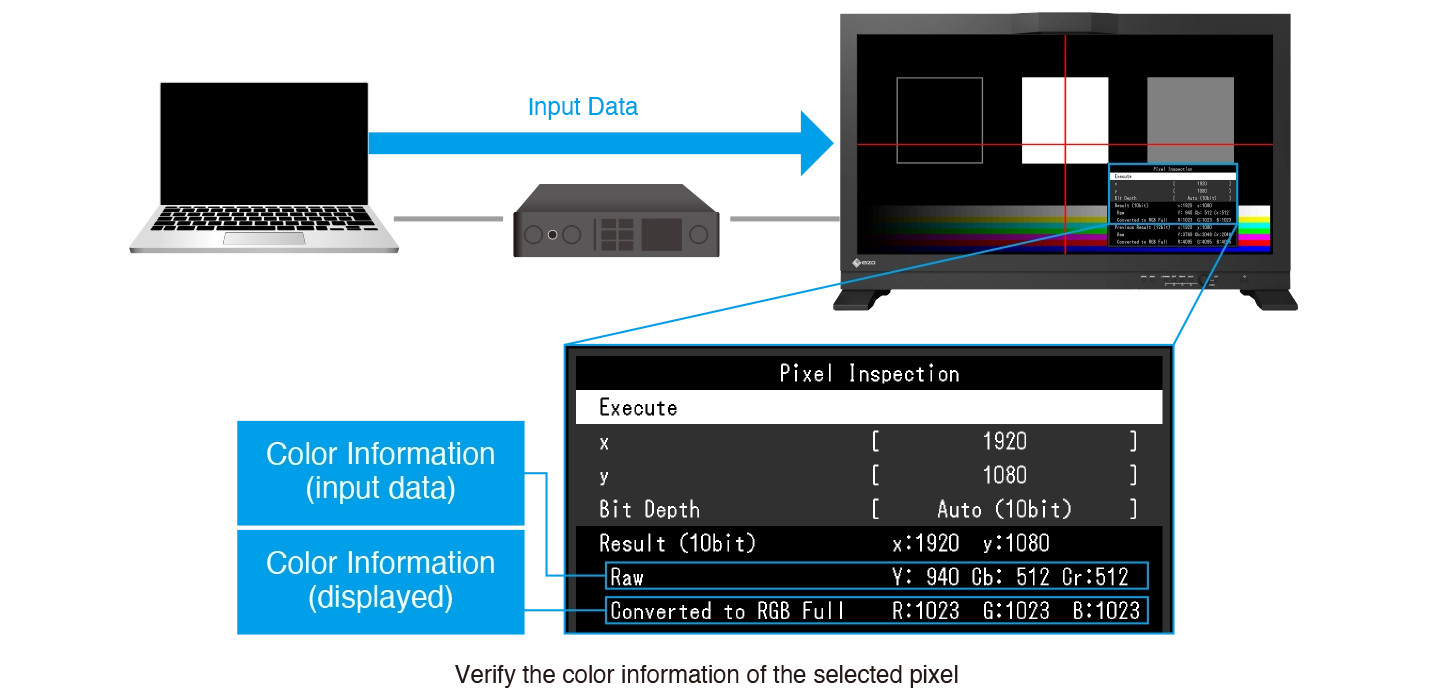

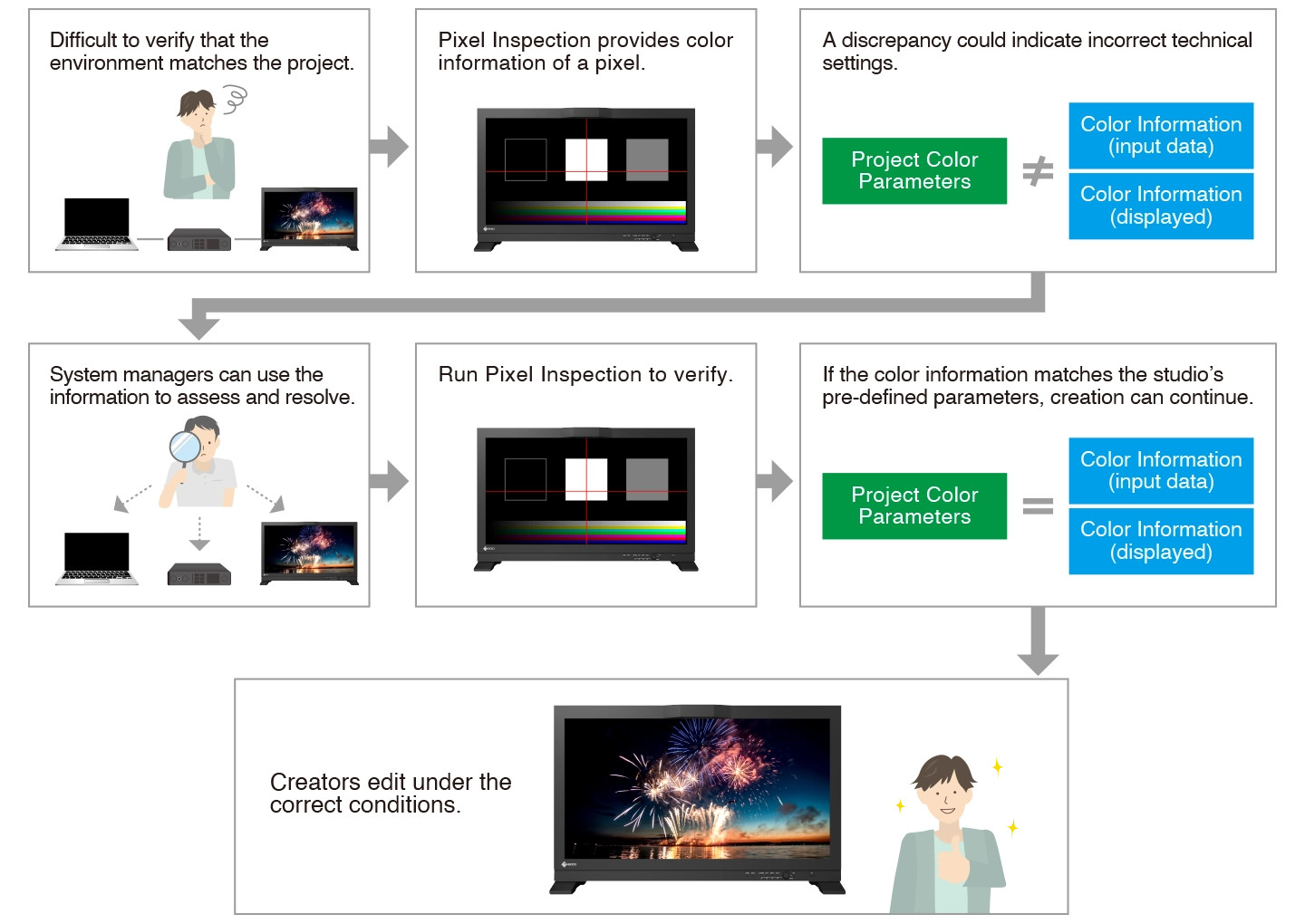

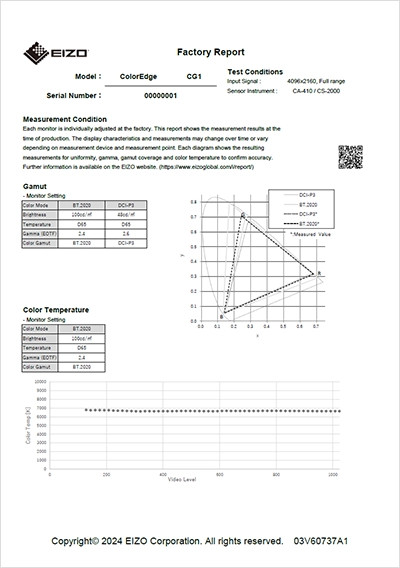

• Factory Report & Pixel Inspection — per-unit accuracy report in the box, plus source-vs-display pixel verification

Usability & build

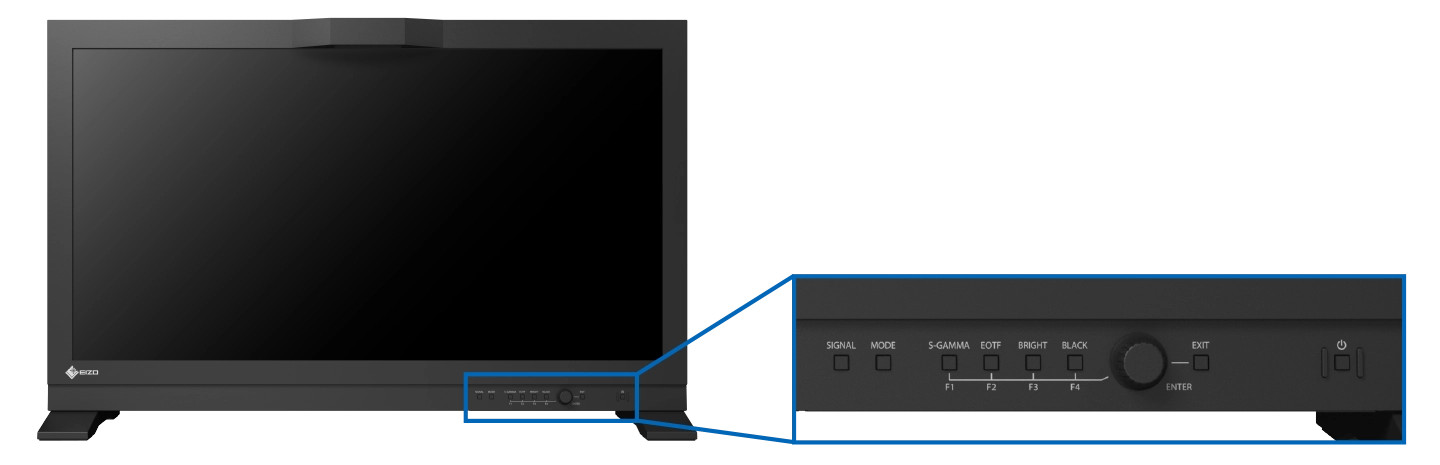

• Front adjustment dial — quick OSD navigation, with a Quick Check preview before committing changes
• External OSD control (GPI) — connect a user-prepared remote via RJ-45 to assign frequent functions (remote not included)
• Flicker-free viewing — without compromising color stability
• Reduced weight — 17.5 kg, over 30% lighter than its predecessor, with secure rear handles

Available through Alder Color Solutions. Our G7-certified color experts can help you integrate the PROMINENCE CG1 into a calibrated HDR mastering and proofing workflow.
