Mimaki JFX600-2513

$242,545.00

Large Format UV Flatbed

The Mimaki JFX600-2513 UV-LED flatbed printer is the fastest model in the world’s best-selling JFX Series line. Productivity has never looked better. This state-of-the-art printer is geared for high accuracy, high image quality, and blazing speed.

Description

Blazing Speed, High Definition

  • 16 print heads
  • Print speeds up to 2,152 square feet per hour
    • Equivalent to 67 boards per hour
  • On machine job and maintenance control via Mimaki Print Controller (MPC)
  • Industry leading Mimaki Core Technologies
  • Print area of 98.425” x 51.181”; up to 2.362” thick
  • Production workflow ready with MDL support
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • Compact design

Specifications

Printhead Sixteen on-demand piezo heads in a staggered array
Print Resolutions 600 x 600dpi, 600 x 1,200dpi, 1,200 x 1,200dpi
Print Speed (4 Color Mode) up to 2,152.78 SqFt/Hr (200.0 m2/h)
Maximum Print Area 98.43″ x 51.18″ (2,500 x 1,300 mm)
Maximum media width 98.43″ (2500 mm)
Maximum Media Thickness up to 2.36″ (60 mm)
Maximum Media Weight 110.2 lbs. (50kg/m²)
Ink Type U.S. & Canada- LH-100, LUS-120, LUS-150 | Mexico, Central & South America- LH-100, LUS-120, LUS-150
Interface Ethernet 10,000 BASE-T
Power Supply AC 200 – 240 V, 50/60 Hz
Power Consumption x3 AC200-240±10% ~16kVA 50/60Hz±1Hz
Operational Environment Temperature 68° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)
Dimensions (W × D × H) 207.48″ x 110.24″ x 62.99″ (5,300×2,850×1,700mm)
Weight 2, 645.5 lbs. (1,200 kg)
Certifications UL 775 ETL, CE Marking (EMC Directive,Low Voltage Directive, Machinery Directive), RoHS / REACH / EAC
LH-100 UV curable ink Cyan Magenta Yellow Black White Clear Primer
1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA

UV curable ink (LUS-120) Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear
1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA LUS12-W-BA LUS12-CL-BA

UV curable ink (LUS-150) Cyan Magenta Yellow Black White Clear Primer
1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-W-BA (Use LH-100)

UV Primer (PR-200) Primer
1L Bottle PR200-Z-BA







Specifications

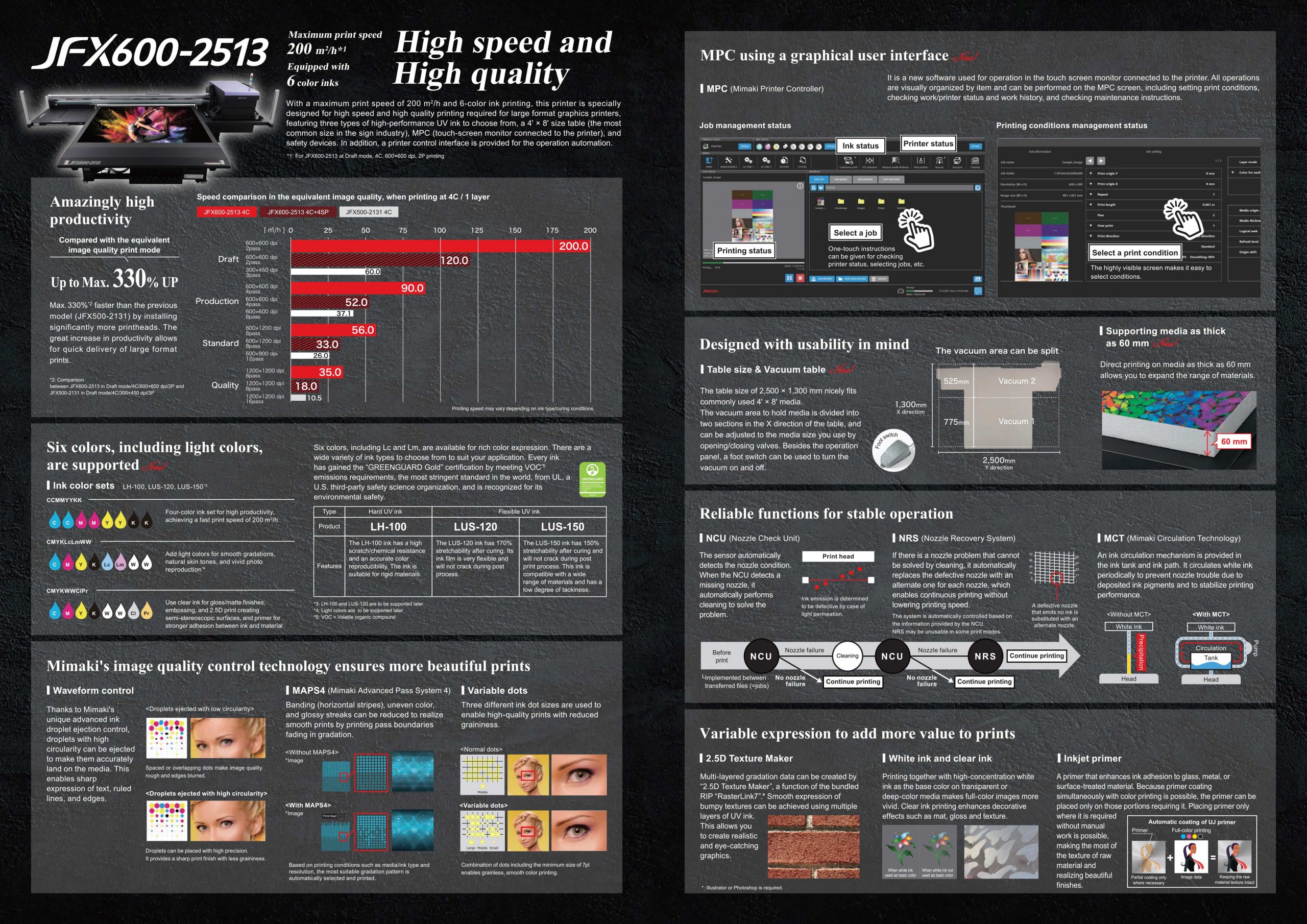

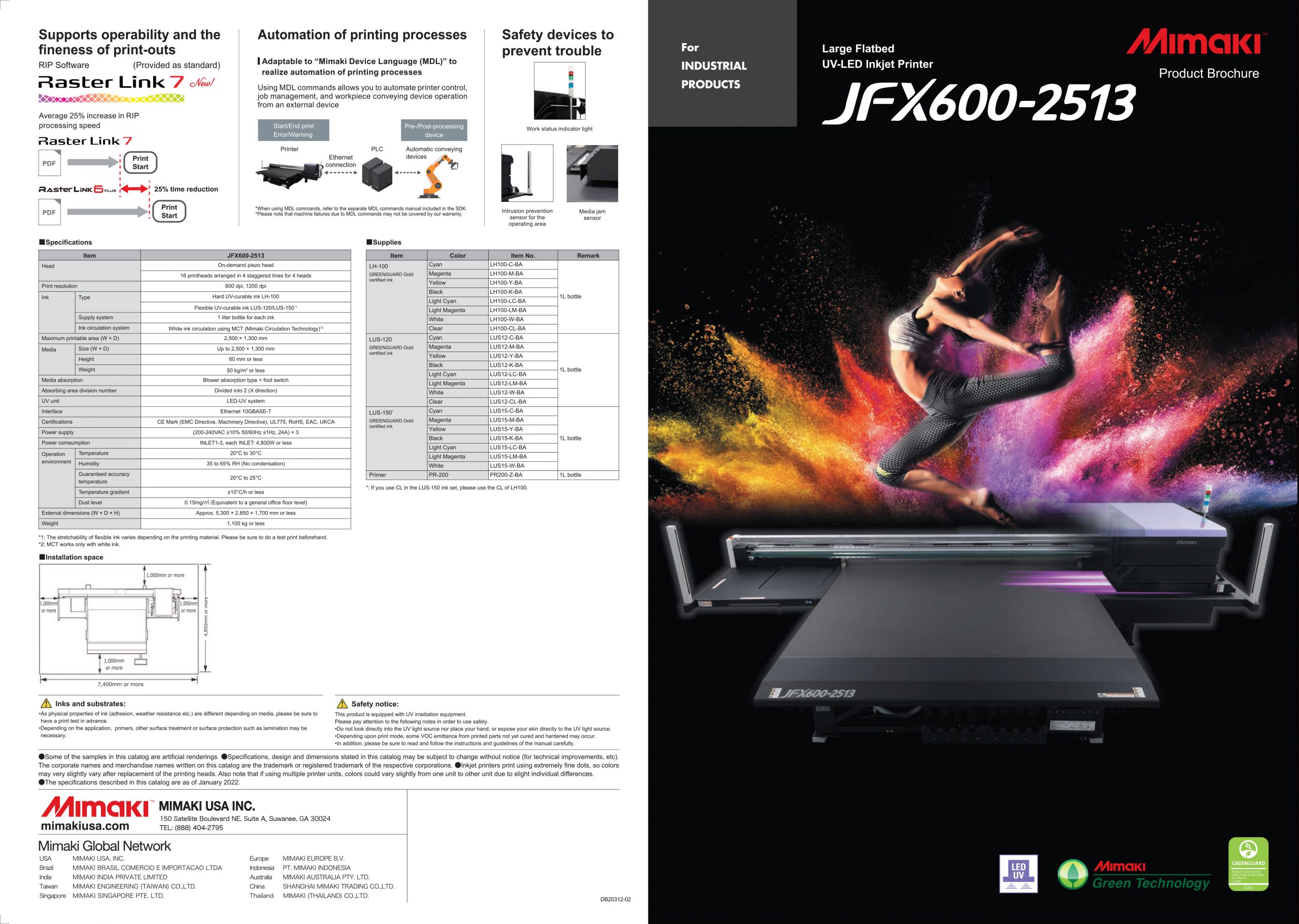

Brochure

JFX600-2513

Brand

Mimaki
