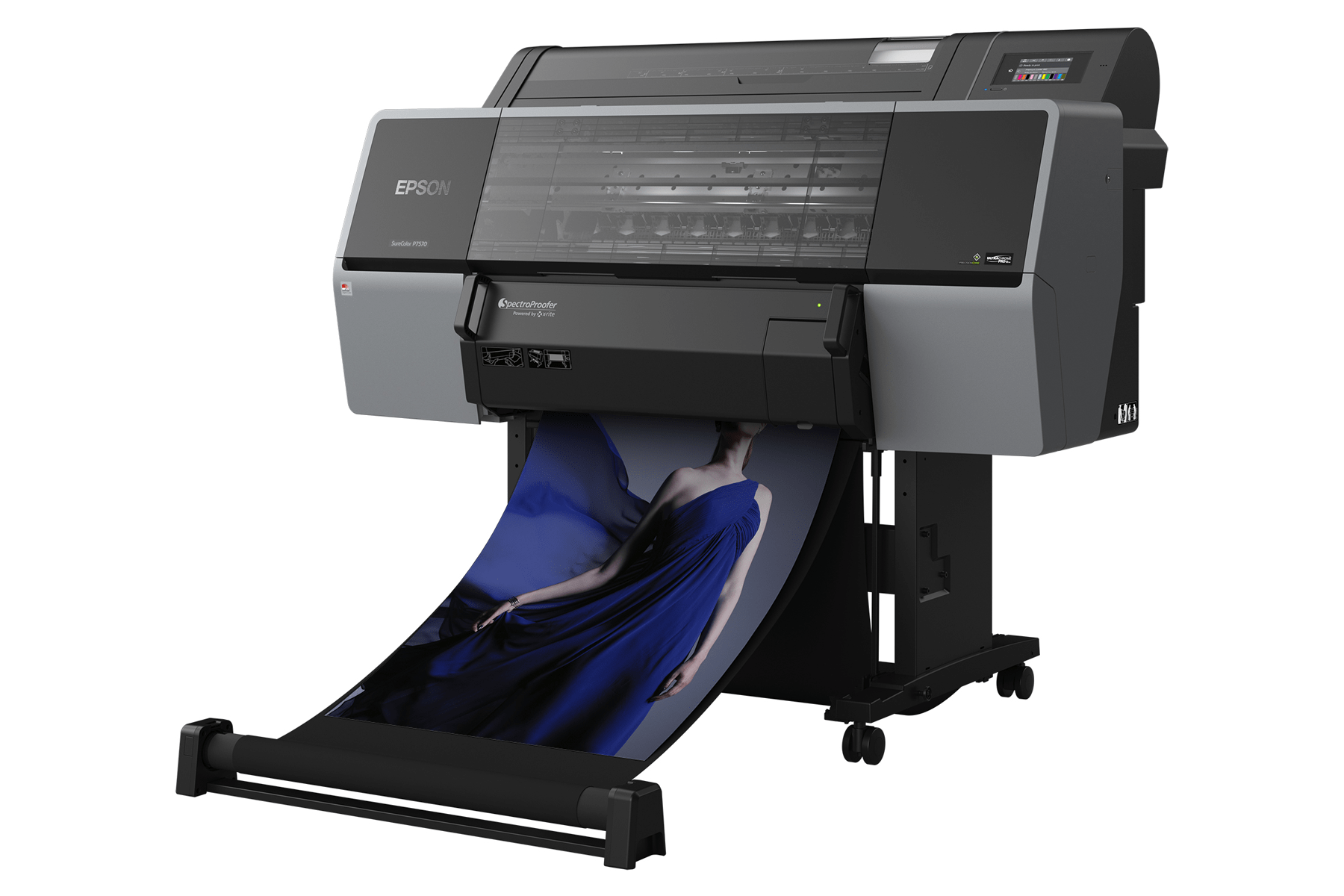

The Epson SureColor P7570 is the next generation of 24" wide-format printing — built from the ground up to serve the full spectrum of creative and professional needs. From professional photography and fine art reproduction to proofing and graphic design, the P7570 delivers unparalleled color brilliance and accuracy with all-new 12-color UltraChrome PRO12 ink.
Featuring a new 2.6" PrecisionCore printhead, the P7570 produces stunning image quality at speeds up to 2.4 times faster than the previous generation — with a minimum ink droplet size of just 3.5 picoliters for exceptional detail and smooth gradations across every print.
Why shops choose the Epson SureColor P7570:
- 12-color UltraChrome PRO12 ink — Cyan, Photo Black, Vivid Magenta, Light Cyan, Vivid Light Magenta, Yellow, Gray, Light Gray, Matte Black, Green, Orange, and Violet for unmatched color brilliance
- New 2.6" PrecisionCore printhead — up to 2.4x faster than the previous generation at 2400 x 1200 dpi
- 3.5 picoliter minimum droplet size — exceptional fine detail, smooth gradations, and accurate color reproduction
- Borderless printing — edge-to-edge output on media from 7" to 24" wide
- Professional media handling — roll feed, media bin, and output bin with sheet media up to 1.5 mm thick
- 4.3" color touchscreen — intuitive front-panel control and job management
- Wired and network connectivity — USB 2.0 and Gigabit Ethernet for seamless workflow integration
- Windows and macOS compatible — fits into any professional production environment
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | Inkjet — 2.6" PrecisionCore printhead | Print Resolution | 2,400 x 1,200 dpi |
| Ink Type | UltraChrome PRO12 Pigment — Cyan, Photo Black, Vivid Magenta, Light Cyan, Vivid Light Magenta, Yellow, Gray, Light Gray, Matte Black, Green, Orange, Violet | Compatible Cartridges | Epson T44 Series |
| Min Droplet Size | 3.5 picoliters | Borderless Printing | Yes |
| Printer Language | ESC/P-R | Media Handling | Roll Feed, Media Bin, Output Bin |
| Media Width | 7" to 24" (17.8 to 61 cm) | Media Thickness | 0.8 to 1.5 mm (31.5 to 59.1 mil) |
| Interface | USB-B 2.0, RJ45 Ethernet | Display | 4.3" color touchscreen |
| OS Compatibility | Windows / macOS | Power Supply | AC 110–220V, 50/60Hz |
| Power Consumption | Max: 85W | Sleep: 3.4W | Off: 0.3W | Dimensions (W×H×D) | 55.5" × 48" × 26.3" (141 × 121.9 × 66.8 cm) with stand |
| Weight | 269 lbs (122 kg) with stand | Cartridge Configuration | 12x individual cartridges |
