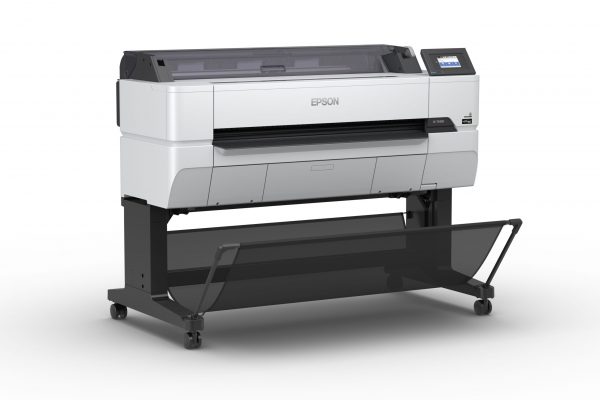

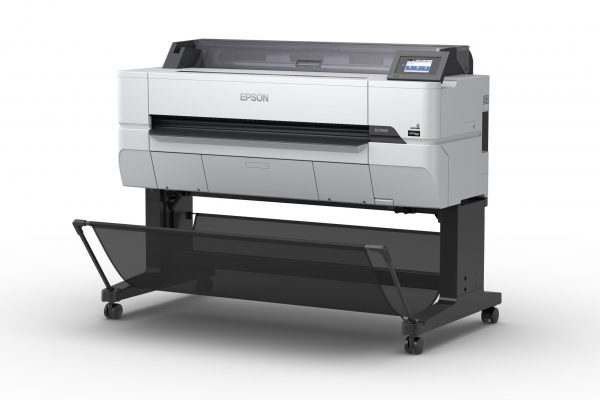

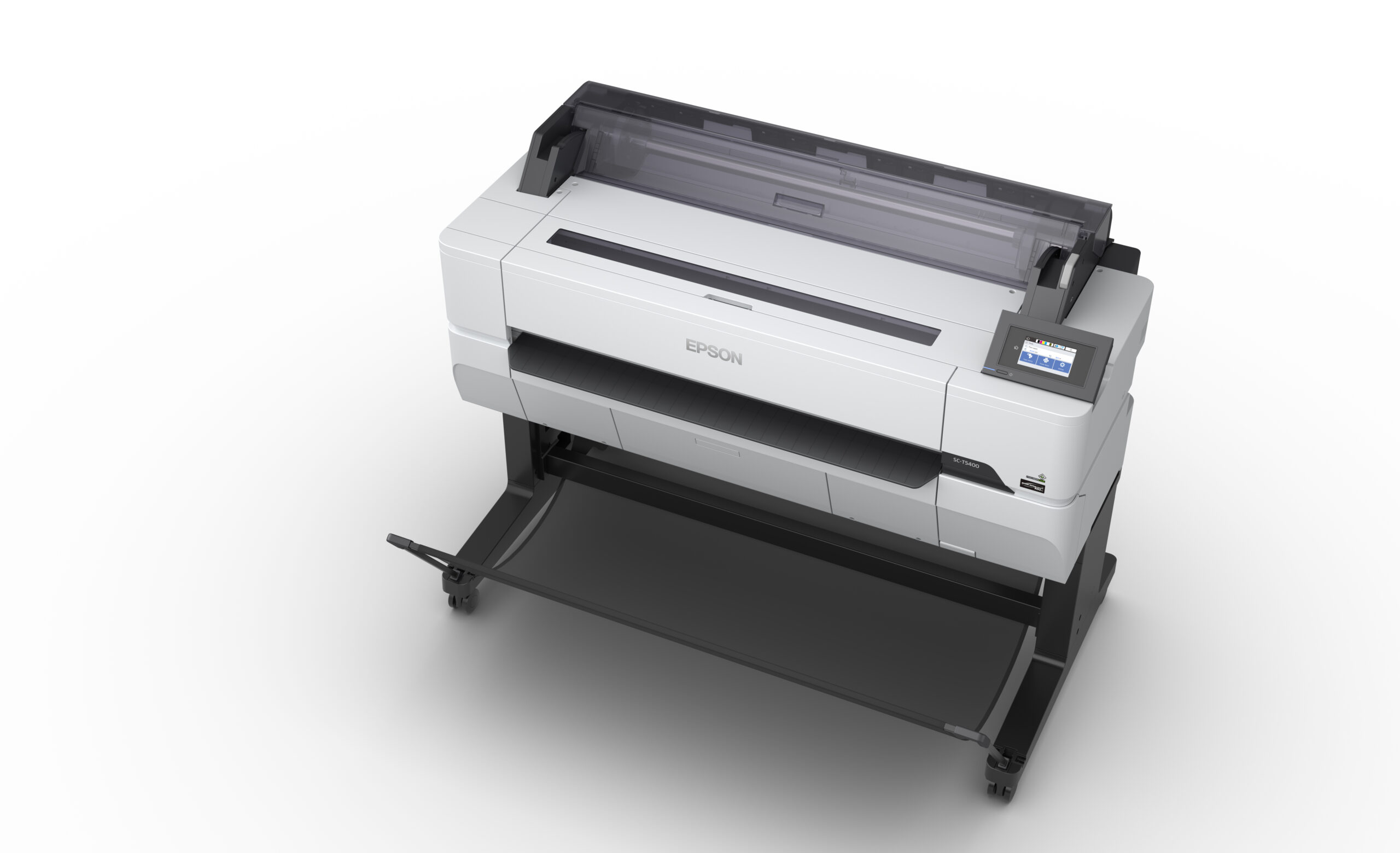

The Epson SureColor T5470 is a productive and easy-to-use 36" wide-format wireless printer built for workgroup environments that demand speed, precision, and reliability. Ideal for high-production printing of blueprints, line drawings, and posters, it delivers accurate A1/D-size prints in as little as 22 seconds — all within a compact, robust design that maximizes office space.
Powered by Epson's PrecisionCore MicroTFP printhead and next-generation UltraChrome XD2 archival pigment inks, every print delivers outstanding clarity, durability, and vibrant color. A 4.3" color touchscreen makes navigation intuitive, and advanced network security and encryption safeguard sensitive information across your workgroup.
Why shops choose the Epson SureColor T5470:
- A1/D-size prints in 22 seconds — fast, accurate output for blueprints, drawings, charts, and posters
- UltraChrome XD2 archival pigment inks — durable, vibrant prints built to last
- PrecisionCore MicroTFP printhead — outstanding image clarity and commercial-grade reliability
- Commercial-grade reliability — permanent printhead with advanced Nozzle Verification Technology and 1-year limited warranty
- 4.3" color touchscreen — intuitive navigation and printer settings
- Advanced network security — encryption safeguards sensitive documents and workgroup data
- USB thumb drive printing — print blueprints, drawings, and posters directly without a computer
- Compact, robust design — maximizes office space without sacrificing production capability
Eco Features
- ENERGY STAR qualified
- RoHS compliant
- Recyclable product
- Epson America is a SmartWay Transport Partner
What's In The Box
- SureColor T5470 Printer
- Printer Stand
- Full set of initial ink cartridges (CMYK — 110 mL)
- Start Here Poster
- User Guide
- AC Power Cable
Note: Media is not included with the printer.
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | PrecisionCore MicroTFP 4-channel drop-on-demand printhead | Max Resolution | 2,400 x 1,200 dpi |
| Print Speed | A1/D-size print in 22 seconds | Min Droplet Size | 4 picoliters — Variable Droplet Technology (up to 3 sizes per line) |
| Nozzle Configuration | 800 nozzles x 4 channels (color and monochrome) | Ink Type | UltraChrome XD2 Pigment — C, M, Y, K |
| OS Compatibility | macOS 10.7–10.13 | Windows XP / Vista / 7 / 8.1 / 10 (32 & 64-bit) | Sound Level | Operating: 50 dB(A) | Sleep: 32 dB(A) |
| Operating Environment | 50–95°F (10–35°C) | Recommended: 65–75°F (18–24°C) Humidity: 20–80% | Recommended: 45–60% |
Storage Environment | -4 to 104°F (-20 to 40°C) Humidity: 5–85% (non-condensing) |
| Dimensions (with stand) | 55" × 28" × 42" (1,385 × 696 × 1,060 mm) | Weight (with stand) | 168 lbs (76 kg) |
| Certifications | UL (MET), FCC Class A, CSA, CE, EMC, ENERGY STAR, RoHS | ||
Ink Reference
| UltraChrome XD2 Ink | Cyan | Magenta | Yellow | Black |
|---|---|---|---|---|
| 110 mL Cartridge | T41W220 | T41W320 | T41W420 | T41W520 |
| 350 mL Cartridge | T41P220 | T41P320 | T41P420 | T41P520 |
