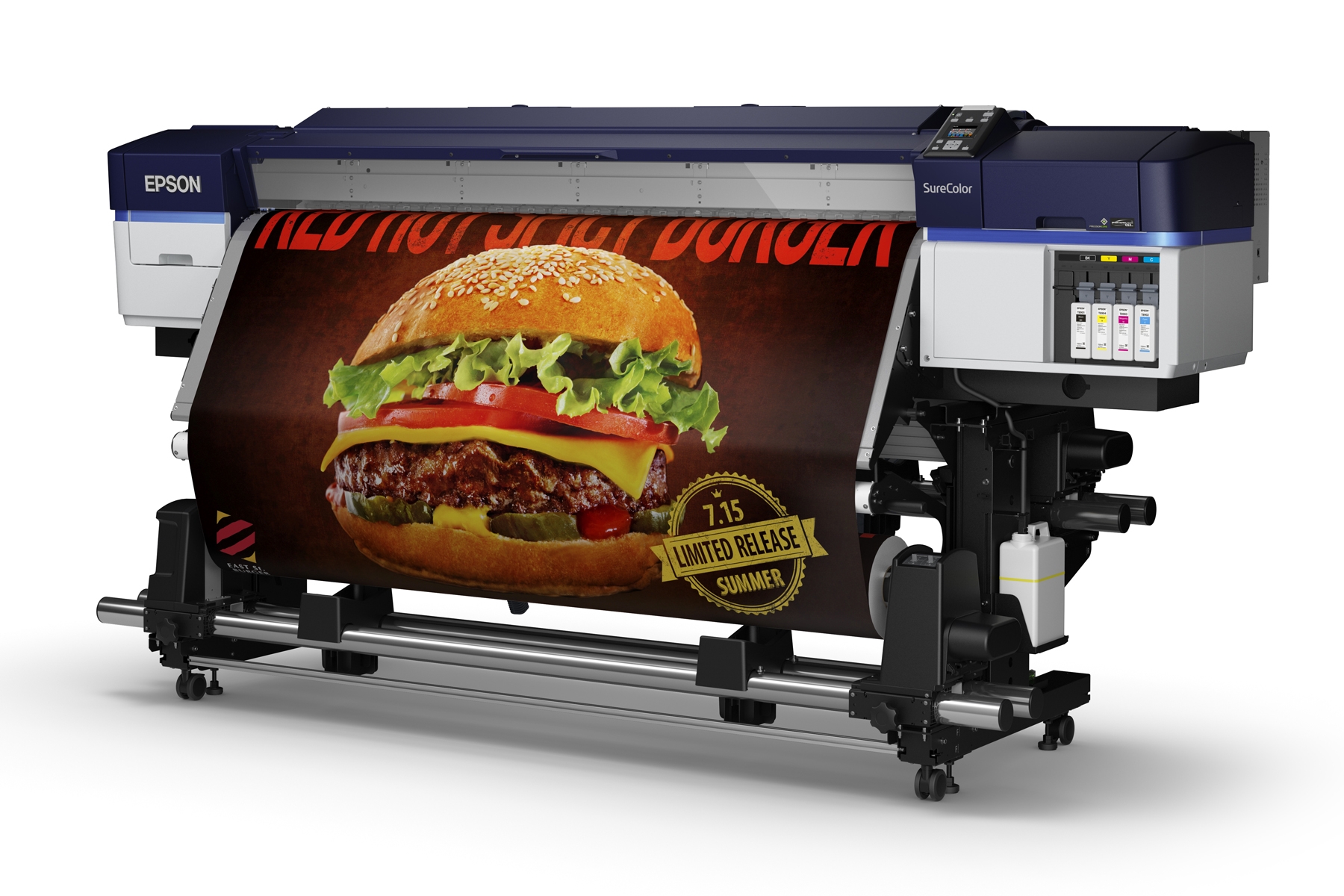

The Epson SureColor S40600 is an affordable 64" roll-to-roll solvent sign printer built for print shops of any size that need class-leading performance at an entry-level price point. Featuring Epson's PrecisionCore TFP printhead and fourth-generation UltraChrome GS3 solvent ink — including a newly developed Red ink for outstanding color gamut — the S40600 produces sellable-quality banner output at 215 sqft/hr and adhesive vinyl at up to 170 sqft/hr.
With automated maintenance technology, reduced manual upkeep requirements, and ONYX RIP software included, the S40600 delivers a complete, production-ready workflow right out of the box — without the complexity or cost of higher-tier systems.
Why shops choose the Epson SureColor S40600:
- Affordable 64" entry-level solvent printer — class-leading performance at an aggressive price point
- Production speeds up to 215 sqft/hr banner, 170 sqft/hr vinyl — up to 610 sqft/hr in draft mode
- UltraChrome GS3 solvent ink — improved outdoor durability, extremely fast drying, superior media compatibility with no special ventilation required
- Red ink technology — unique red solvent ink delivers significant color gamut improvements for outstanding signage reds
- PrecisionCore TFP printhead — up to 1440 x 1440 dpi with variable droplets as small as 4.2 picoliters for sharp text and line art
- Automated maintenance system — user-replaceable fabric wiper, air filters, and internal filtration for reliable continuous printing
- Reduced manual maintenance — as little as once per month, completed in under 10 minutes
- ONYX RIP software included — layout, RIP queue, Pantone spot color matching, tiling, nesting, and media calibration all built in
- Nordic Swan certified — meets the chemical requirements of the Nordic Ecolabel
Service & Support
Standard one-year on-site next business day service with toll-free phone support Monday through Friday — covering the printer, genuine Epson optional accessories, and software. Extended service plans available for up to two additional years of total coverage.
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | PrecisionCore TFP — 8-channel drop-on-demand inkjet, 4 color (C, M, Y, K) | Max Resolution | 1,440 x 1,440 dpi |
| Max Printable Width | 63.6" | Min Droplet Size | 4.2 picoliters — Variable Droplet Technology |
| Nozzle Configuration | 720 nozzles per color (color and monochrome) | Ink Type | UltraChrome GS3 Solvent — CMYK |
| Print Speed — Draft | 610 sqft/hr | Print Speed — Production | Banner: 215 sqft/hr | Vinyl: 170 sqft/hr |
| Print Speed — Quality | Banner: 170 sqft/hr | Vinyl: 140 sqft/hr | OS Compatibility | Mac OS X 10.8–10.11 | Windows 7 / 8.1 / 10 (64-bit) |
| System Requirements | Intel i7 or better, 6 GB RAM recommended | Sound Level | Approx. 59 dB (ISO 7779) |
| Operating Environment | Temp: 50–95°F (10–35°C) Humidity: 20–80% | Recommended: 40–60% |
Storage Environment | Temp: -4 to 104°F (-20 to 50°C) Humidity: 5–85% (non-condensing) |
| Dimensions (W×D×H) | 103" × 34" × 53" (2,616 × 609 × 1,346 mm) | Weight | 615 lbs (278 kg) |
Ink Reference
| UltraChrome GS3 Ink | Black | Cyan | Magenta | Yellow |
|---|---|---|---|---|
| Replacement Cartridge | T890100 | T890200 | T890300 | T890400 |
