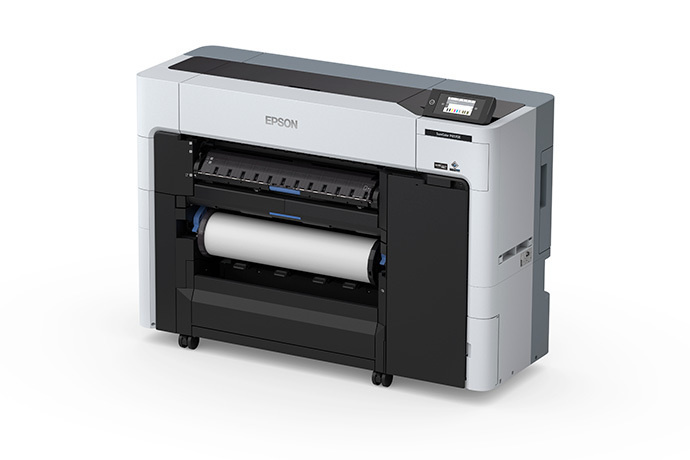

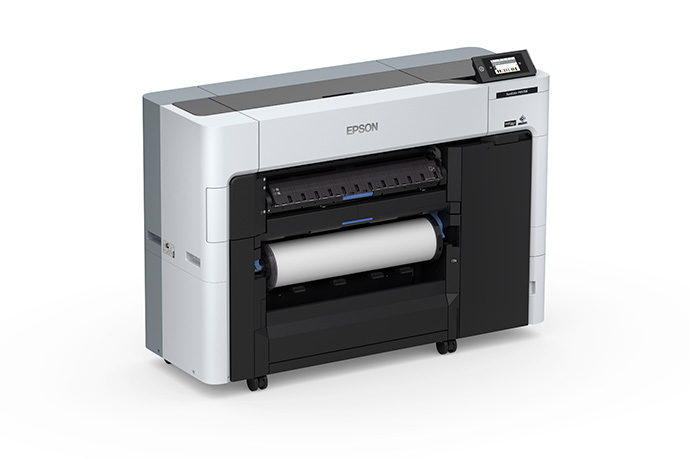

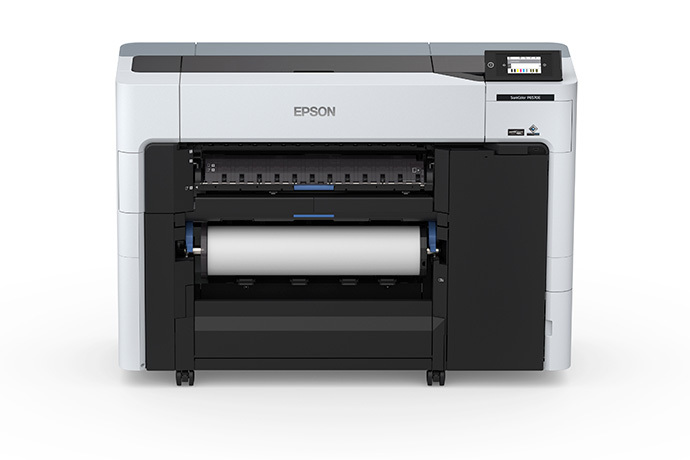

The Epson SureColor P6570E is a reimagined wide-format production photo printer engineered to deliver exceptional image quality and true production speeds — all within a compact, flat-top design that fits almost any workspace, including tight corners and against walls.
Powered by 6-color UltraChrome PRO6 ink with Gray and Epson's PrecisionCore MicroTFP printhead, the P6570E produces vivid, richly detailed photographic prints with smooth gradations and neutral black-and-white images that rival comparable 8-color printers. From roll media to rigid posterboard up to 1.5 mm thick, this printer handles a wide range of photo, fine art, and canvas applications with ease.
Why shops choose the Epson SureColor P6570E:
- Innovative flat-top design — complete front operation and automatic roll loading fits any workflow and pushes against a wall
- 6-color UltraChrome PRO6 ink with Gray — vibrant, rich color and smooth neutral black-and-white that rivals 8-color printers
- PrecisionCore MicroTFP printhead — remarkable production speeds with sharp, detailed photographic output
- Wide media compatibility — photo, fine art, canvas, and rigid posterboard up to 1.5 mm thick
- Up and printing in 30 minutes — no assembly required with USB 3.0, Gigabit Ethernet, and Wi-Fi (2.4 & 5 GHz)
- 4.3" configurable touchscreen — simple front-panel operation with automated routine maintenance
- 28+ security and IT features — hardware encryption, IC card user control, and remote IT management tools
- Epson Cloud Solution PORT — remotely manage and monitor your printer fleet from any laptop or smart device
- Eco-friendly — RoHS compliant, recyclable, and Epson is a SmartWay Transport Partner
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | PrecisionCore MicroTFP 6-channel drop-on-demand | Max Resolution | 2,400 x 1,200 dpi |
| Ink Type | UltraChrome PRO6 Pigment — C, M, Y, Matte Black, Photo Black, Gray | Nozzle Configuration | 9,600 nozzles (400 x 24 channels x 1 head) |
| Droplet Size | From 3.5 picoliters; up to 3 variable sizes per line | Ink Cartridge Sizes | 150 mL, 350 mL, or 700 mL per color (6 colors) |
| Print Speed — Plain Paper | Draft: 1,220 sqft/hr | Speed: 926 sqft/hr | High Quality: 79 sqft/hr | Print Speed — Photo Glossy | Speed: 298 sqft/hr | Quality: 174 sqft/hr | Max Quality: 79 sqft/hr |
| Roll Media Width | 10–24" | 2" or 3" core | Max outer diameter 6.69" | Max weight 15 lbs | Sheet Media Width | 8–24" | Front or rear loading |
| Media Thickness | Roll/Sheet: 0.07–0.80 mm | Posterboard: 0.8–1.5 mm | BorderFree Widths | 10", 13", 14", 17", 20", 24" |
| Interface | USB 3.0, Gigabit Ethernet (100/1000 BASE-T), Wi-Fi 802.11 b/g/n/ac, USB memory stick | Display | 4.3" configurable color touchscreen |
| Memory | 4 GB built-in | 960 GB SSD optional | OS Compatibility | macOS 10.9.5 or later | Windows 7 / 8 / 8.1 / 10 / Server 2003–2019 |
| Power Supply | AC 110–240V, 50/60Hz, 3.4–1.6A | Power Consumption | Printing: 75W | Ready: 32W | Sleep: 2W | Off: 0.3W |
| Operating Environment | 50–95°F (10–35°C) | Recommended: 65–75°F (18–24°C) Humidity: 20–80% | Recommended: 45–60% |
Storage Environment | -4 to 104°F (-20 to 40°C), 5–85% RH |
| Dimensions (W×D×H) | 54" × 20" × 38.4" (operating) | 54" × 33" × 38.4" (basket extended) | Weight | 253 lbs |
| Acoustic Noise | 49.6 dBA (ISO 7779) | Certifications | NRTL (CSA/UL 62368-1), FCC Class B, RoHS |
