Mimaki UCJV330 Series
Leading the way for UV-LED technology
The Mimaki UCJV330 UV-LED roll-based cut-and-print device builds on popular Mimaki models with newly
developed ink ejection technology that reduces color irregularities in high-density areas, even in high-speed mode.
Clear ink can be printed as gloss over a color layer or as matte on transparent film. 2.5D print and watermark print
functions have been added. Support for layered printing enables the creation of visual effects including day/night
images. This device can print on a variety of substrates including translucent, transparent, white or colored base
media, PET, polyurethane and other resin films, cloth, and paper.
UCJV330-130 (54")
– Significant speed improvement compared to the UCJV300 model.
– Improved image quality and productivity with significantly higher nozzle density than the UCJV300 model
in the same pass print mode. Mimaki’s UV printing technology achieves high image quality at high speeds.
Clear ink options expand your design potential by producing high value prints. New effects such as 2.5D
textured prints and watermark prints for transitional backlit signage are available.
– Capable of up to 5-layer printing, expanding the range of applications such as double-sided prints, backlit
signage on transparent media, and vibrant prints on colored or reflective media.
– UV-curable ink does not require drying time after printing. Prints can immediately be put through a postprint finishing process without media curling or warping. It is ideal for quantity production of a variety of
applications such as store decorations, posters, labels, stickers, pop-ups, etc.
– Capable of cutting detailed designs instantly for a quick turnaround of labels and stickers; and full rolls of
media can be print & cut continuously with updated software

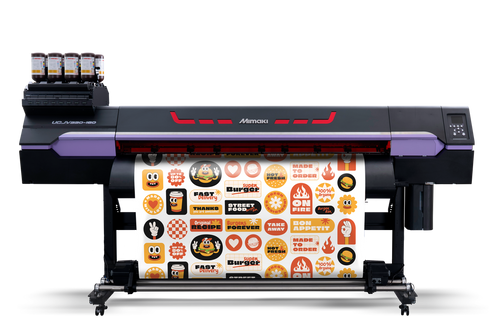

UCJV330-160 (64")
– Speed improvement of 155 percent over UCJV300 model, up to 430.5 sqft/hr (40 sqm/hr).
– Improved image quality and productivity with 200 percent higher nozzle density than the UCJV300 model in
the same pass print mode. Mimaki’s UV printing technology achieves high image quality at high speeds.
– Clear ink options expand your design potential by producing high value prints. New effects such as 2.5D
textured prints and watermark prints for transitional backlit signage are available.
– Capable of up to 5-layer printing, expanding the range of applications such as double-sided prints, backlit
signage on transparent media, and vibrant prints on colored or reflective media.
– UV-curable ink does not require drying time after printing. Prints can immediately be put through a postprint finishing process without media curling or warping. It is ideal for quantity production of a variety of
applications such as store decorations, posters, labels, stickers, pop-ups, etc.
– Capable of cutting detailed designs instantly for a quick turnaround of labels and stickers; and full rolls of
media can be print & cut continuously with updated software
Printhead Two staggered on demand piezo print heads
Print resolution 600 dpi, 1200 dpi, 1800 dpi
Print speed (4 color mode) Up to 430.5 sqft/hr (40.00 sqm/hr)
Maximum print width 63.4 in (1610 mm)
Maximum media width 63.8 in (1620 mm)
Ink Type/Color C, M, Y, K, Lc, Lm, W, Cl
Ink Package Size 1 L Bottle
Media Thickness Up to 0.03 in (1.0 mm)
Rolled Media Weight Max 45 kg (99.2 lb) or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage,
Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC, UKCA
Interface Ethernet 1000 BASE-T (recommended) / USB 2.0 Hi-speed
Power Supply Single phase AC100 - 120V±10% /12A
Single phase AC200 - 240V±10% /6A 50/60 Hz ± 1 Hz
Power Consumption Max. 1,440 W or less
Operational Environment Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65%
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level
Dimensions (W x D x H) 2,890 mm x 800 mm x 1,480 mm (113.8 in x 31.5 in x 58.3 in)
Weight 500.4 lb (227 kg)
Options XY Slitter , 3 Roll Media Changer, Ionizer, Anti-Static Sheet, Facing Guides,
Proofing Light, Heater, and Deodorizing Unit
