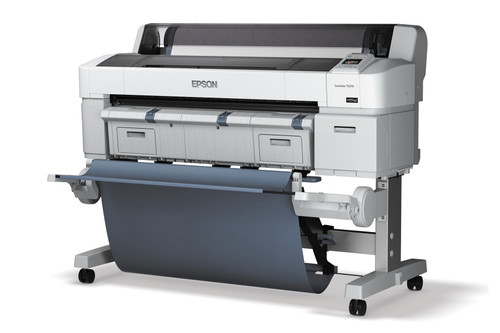

The Epson SureColor T-Series is a large-format color imaging system built to produce precise technical drawings, graphic posters, and retail signage at high speeds — with the performance and scalability to grow alongside your business. Powered by Epson's PrecisionCore TFP printhead, REALOID image processing hardware, and UltraChrome XD pigment ink technology, the T-Series delivers outstanding image accuracy and color consistency across a wide range of applications.
Available in dual-roll models with automatic roll switching, the T-Series maximizes unattended printing productivity — switching between roll sizes and media types automatically to keep jobs moving without manual intervention.
Why shops choose the Epson SureColor T-Series:
- PrecisionCore TFP printhead — up to 2880 x 1440 dpi with 3.5 picoliter minimum droplet size for precise, detailed output
- UltraChrome XD pigment inks — vibrant, durable prints across technical, graphic, and signage applications
- High production speeds — up to 740 sqft/hr max speed with D-size prints in 25 seconds
- Auto-switching dual-roll (dual-roll models) — automatically selects the best roll for each job and maximizes unattended printing
- High-capacity catch basket — keeps output neatly organized during long print runs
- Wide media handling — rolls from 10" to 36" wide, media up to 1.5 mm thick, 2" and 3" core support
- Borderless printing — edge-to-edge output across supported media widths
- ±0.1% line accuracy — reliable precision for technical drawings and CAD output
What's In The Box
- SureColor T-Series Printer
- Printer Stand with Stacking Print Basket
- Spindle-free Roll Media Adaptors
- Set of five 110 mL ink cartridges
- Ink Maintenance Tank (installed)
- AC Power Cable
- User Guide Kit (Documentation and Software)
Note: Printing media is not included.
Backed by Alder Color Solutions' G7-certified color experts, you'll get hands-on support with installation, color profiling, and training so your shop hits the ground running.
Technical Specifications
| Print Technology | Inkjet — PrecisionCore TFP printhead with REALOID image processing | Print Resolution | 2,880 x 1,440 dpi |
| Ink Type | UltraChrome XD Pigment — Photo Black, Matte Black, Cyan, Magenta, Yellow | Compatible Cartridges | Epson T692, T693, T694 Series |
| Nozzle Configuration | 720 per channel | 3,600 total | Min Droplet Size | 3.5 picoliters |
| Print Speed | D-size (22"×34") in 25 sec | Max: 740 sqft/hr | Best Quality: 115 sqft/hr | Line Accuracy | ±0.1% |
| Borderless Printing | Yes | Printer Language | HP-GL/2, HP-RTL |
| Media Handling | Manual Feed, Roll Feed | Roll Media Width | 10" to 36" (25.4 to 91.4 cm) |
| Media Thickness | 0.1 to 1.5 mm (3.1 to 59.1 mil) | Roll Core Diameter | 2" or 3" |
| Interface | USB 2.0, RJ45 Ethernet | Display | Color LCD |
| OS Compatibility | Windows / macOS | Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | Max: 60W | Sleep: 3W | Off: 0.5W | Operating Environment | 50–95°F (10–35°C), 20–80% RH |
| Dimensions (W×H×D) | 56" × 45" × 30" (142 × 114 × 76 cm) with stand | Weight | 186 lbs (84 kg) with stand |
